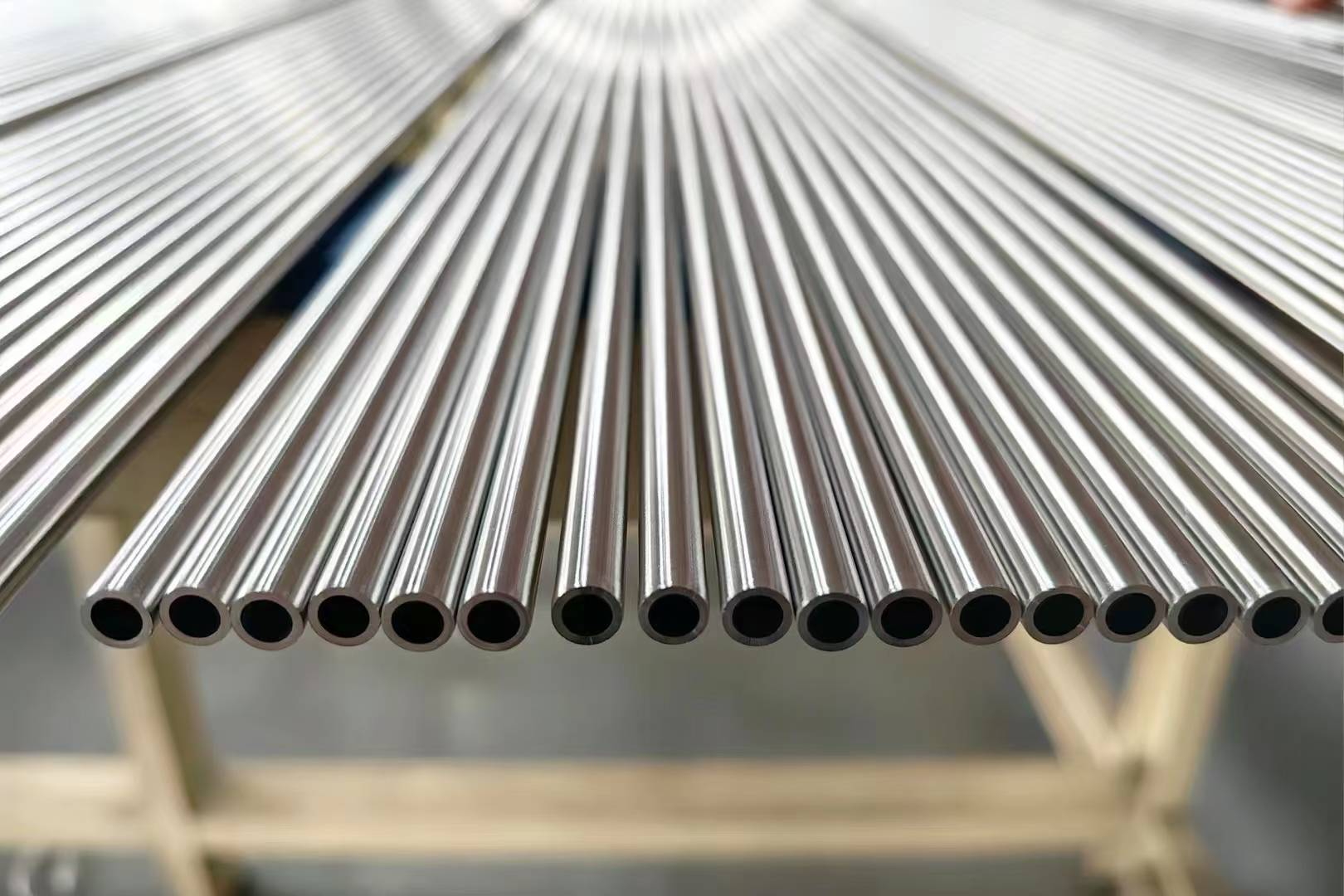

4" OD SCH 80 Inconel 725 pipe

Material	Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape	Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
Grade	Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
	Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc
	Alloy : Alloy 20/28/31
	Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g
	Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
	Haynes: Haynes 230/556/188
	Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20
	Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
	Incoloy: Incoloy 800/800H/800HT/825/925/926;
	GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
	Monel: Monel 400/K500/R405
	Nitronic: Nitronic 40/50/60;
	Nimonic: Nimonic 75/80A/90/A263 ;
Specification	Wire: 0.01-10mm Strip: 0.055.0-5.0250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Product Characteristics	1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..
Standard	GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection	ISO,SGS,BV and so on.
Application	High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
Packaging	1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products

INCONEL SERIES:

Item	600	601	617	625	690	718	X750	825
C	≤0.15	≤0.1	0.05-0.15	≤0.1	≤0.05	≤0.08	≤0.08	≤0.05
Mn	≤1	≤1.5	≤0.5	≤0.5	≤0.5	≤0.35	≤1	≤1
Fe	6-10	rest	≤3	≤5.0	7-11	rest	5-9	≥22
P	≤0.015	≤0.02	≤0.015	≤0.015	--	--	--	--
S	≤0.015	≤0.015	≤0.015	≤0.015	≤0.015	≤0.01	≤0.01	≤0.03
Si	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.35	≤0.5	≤0.5
Cu	≤0.5	≤1	--	--	≤0.5	≤0.3	≤0.5	1.5-3
Ni	≥72	58-63	≥44.5	Bal	≥58	50-55	≥70	38-46
Co	--	--	10-15	≤1.0	--	≤1	≤1	--
Al	--	1-1.7	0.8-1.5	≤0.4	--	0.2-0.8	0.4-1	≤0.2
Ti	--	--	≤0.6	≤0.4	--	--	2.25-2.75	0.6-1.2
Cr	14-17	21-25	20-24	20-23	27-31	17-21	14-17	19.5-23.5
Nb+Ta	--	--	--	3.15-4.15	--	4.75-5.5	0.7-1.2	--
Mo	--	--	8-10	8-10	--	2.8-3.3	--	2.5-3.5
B	--	--	≤0.006	--	--	--	--

Form and Condition	Tensile Strength		Yield Strength (0.2% Offset)		Elongation, %	Hardness, Rockwell
Form and Condition	ksi	Mpa	Ksi	Mpa	Elongation, %	Hardness, Rockwell
Wire
cold drawn
Annealed	80-120	550-830	35-75	240-520	45-20	-
No. 1 Temper	105-135	725-930	70-105	480-725	35-15	-
Spring Temper	170-220	1170-1520	150-210	1035-1450	5-2
